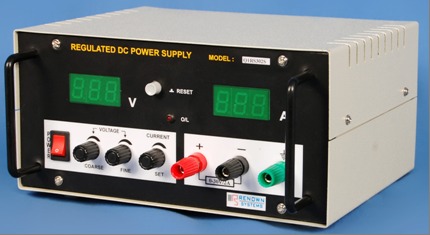

Regulated DC Variable Power supply 0-30V /0-5A
Product Details:
Product Description
0-30V/0-5A with 2 Digital meters
Technical Specifications
| Input Power | 230VAC+/- 10%
|
| Frequency | 50 ± 3 Hz. |
| Out Put | 0-30V/0-5A
|
| Line Regulation | Better than 0.05% for the Input variation of +/-10%
|
| Load Regulation | Better than 0.05% from no Load to full load. |
| Static Regulation | ±1%. |
| Mode | CV&CC |
| Ripple Noise | Less than 1 mV rms
|
| Protection | Short Circuit and Over load with buzzer |
| Meter | 1Voltmeter & 1Ammeter (Digital) |
| Output Voltage | 7 segment Display. |
| Output Current | 7 Segment Display. |
| Power On | On/Off Power switch |
| Terminals | Extended Output Terminals 4mm BTI-15 |
| Indication | Constant Voltage Indication. Constant current Indication. |
| Setting Voltage
| Output voltage setting Coarse & Fine tuning |
| Setting Current | Current Limit Down setting. Current Limit Up setting. |
| Operating Temp. | 5ºC to +50ºC. |
| Storage Temp. | 0ºC to +70ºC. |
| Humidity | 85% RH |
| Size | W/H/D 330/110/250 (mm) |
Note: While withdraw the current so that time the current Potential meter should be always maximum or adjust the current what your required, do not put it the current pot at minimum., otherwise will be showing C/C indication like overload and beep sound.

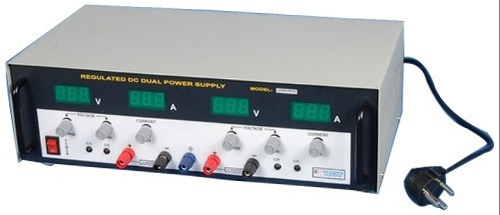

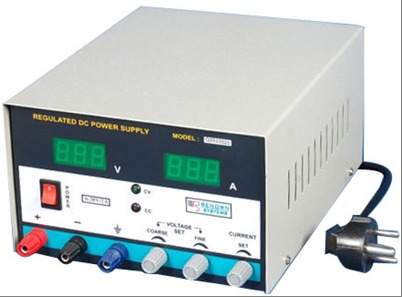

Other Products in 'Power Supplies' category
|
|
|
 |
