Product Description

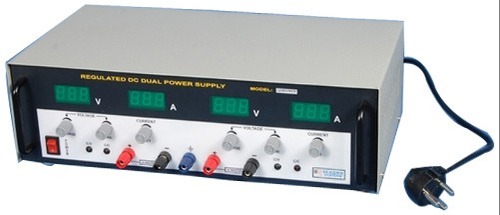

REGULATED DC DUAL POWER SUPPLY 0-30V/2A DUAL Q1RS302D

DUAL CHANNEL DC VARAIBLE POWER SUPPLY 0-30V, 0-2A with 4 Digital meter

Data Sheet:

Input Power  :230VAC+/- 10% 50Hz

OutPut:0-30V/0-2A Dual Both are Variable

Load Regulation:Better than 0.5% from no load to full load.

Line Regulation :Better than 0.5% for the Input variation of 10%.

Mode :CC&CV

Ripple&Noise  :Less than 1 mV rms.

Protection:Short Circuit and Over load.

Meter :2Voltmeter & 2Ammeter (Digital)

Description manual:

1.Output Voltage 7 segment Display.

2.Outout Current 7 Segment Display.

3.On/Off Power switch.

4.extended Output Terminals

5.Constant Voltage Indication.

6.Costant current Indication.

7.Current Limit Down setting.

8.Current Limit Up setting.

9.Output voltage setting.
