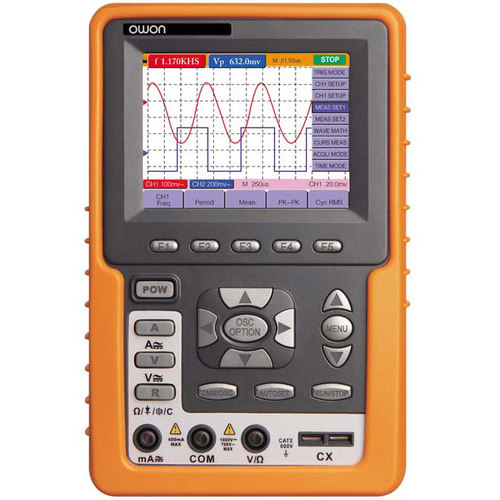

Owon HDS1021M 20MHz Handheld
Digital Storage Oscilloscope

Autoscale
20 automatic measurements
2 in 1 (DSO + Multimeter)
Bandwidth: 20MHz
Support USB for data transmission to PC
TFT true color display
Replaceable li-ion battery back up (6 hours)

Specifications
Bandwidth	20MHz
Sample rate(Real time)	100MS/s
Horizontal Scale(S/div)	5ns/div~100s/div, step by 1~2.5~5
Rise time (at input, typical)	17.5ns
Channels	Single
Display	3.5color display with TFT panel (320 - 240 pixels)
Input impedance	1M±2%in parallel with 18pF±5pF
Probe attenuation factor	1X, 10X, 100X, 1000X
Max. input voltage	400V (DC + AC PK-PK, 1M input impedance, Probe attenuation 10:1)
DC gain accuracy	±3%
DC accuracy(Average)	Average 16:±(3% reading+0.05div) for ”V
Probe attenuation factor	1X, 10X, 100X, 1000X
LF respond(AC, -3dB)	5Hz(at input, AC coupling, -3dB)
Record length	Max.6000 points for each channel
Interpolation	(sin x)/x
Input coupling	DC, AC, GND
Acquisition modes	Sample, Peak Detect and Average
Vertical resolution (A/D)	8 bit
Vertical sensitivity	5mV/div 5V/div (at input)
Trigger type	Edge, Video
Trigger mode	Auto, Normal, Single
Trigger level	Â±6 divisions from screen center
Automatic measuremant	PK-PK, Average, RMS, Frequency, Cycle, Vmax, Vmin, Vtop, Vmin, Vamp, Rise Time. -Width, +Duty,-Duty, Overshoot, Preshoot
Waveform storage	4 waveforms
Communication interface	USB
Cymometer	Available
Power supply	100V-240V AC, 50/60Hz
Li-ion battery	7.4V, 6 hours operation
Multimeter Specification
Full scale reading	3 digits (Max.4000-count)
Input Impedance	10M
Capacitance	51.2nF-100uF:±(3%±3 digit)
Voltage	VDC:400mV,4V, 400V: ±(1±1digit) Max. input: DC 1000V, VAC:4V,40V,400V:±(1±3digit) Frequency:40Hz-400Hz, Max. input: AC 750V(virtual value)
Current	DCA:40mA, 400mA:±(1.5%±1 digit) 20A:±(3%±3digit) DAA:40mA±(1.5%±3digit) 400mA:±(2±1digit) 20A:±(3%±3digit)
Impedance	400:±(1%±3digit), 40

Included Accessories
	1 - Probe 1 - Miltimeter lead 1 - Adapter 1 - Current extend module 1 - Small capacitance module 1 - USB data cable 1 - CD-Rom 1 - Probe adjust 1 - Soft bag 1 - User's Manual	Included

Other Products in 'Electronic Testing Equipment' category

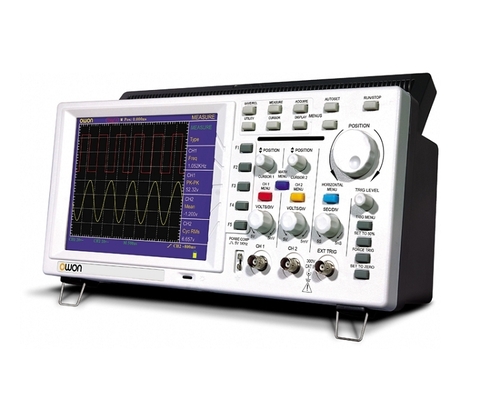

Digital storage oscilloscope 25MHZ
