Product Description

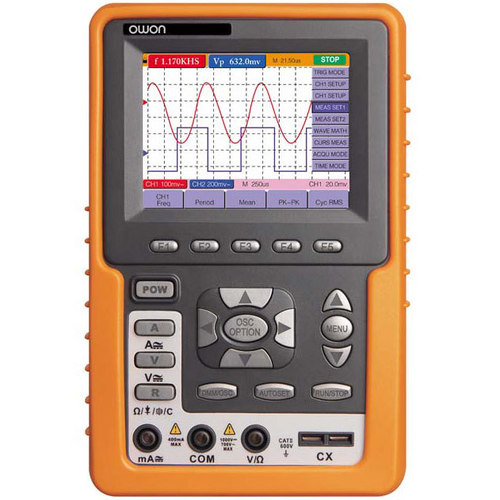

Owon PDS5022T 25 MHz Portable
Digital Oscilloscope
| Specifications | | Bandwidth | 25MHz | | Sample rate(Real time) | 100MS/s | | Horizontal Scale(S/div) | 5ns/div~100s/div, step by 1~2.5~5 | | Rise time (at input, typical) | 14ns | | Channels | Dual channels + external trigger | | Display | 7.5 color display, TFT screen, 640” 480 pixels | | Input impedance | 1M 2% in parallel with 20pF ±5pF | | Isolation between channels | 50Hz (100:1), 10 MHz (25:1) | | Max. input voltage | 300V (DC + AC PK-PK, 1M input impedance, Probe attenuation 10:1) | | DC gain accuracy | ±5% | | DC accuracy(Average) | Average 16: ±(5% reading+0.05div) for V | | Probe attenuation factor | 1X, 10X, 100X, 1000X | | LF respond(AC, -3dB) | 5Hz(at input) | | Record length | 5K points on each channel | | Sampling rate/relay time accuracy | ±100ppm | | Interpolation | (sin x)/x | | Interval (T) accuracy (full bandwidth) | Single: (1 interval time+100ppm”reading+0.6ns)
Average>16:±(1 interval time+100ppm”reading+0.4ns) | | Input coupling | DC, AC | | Displacement | ±50V(500mV-5V), ±2V(5mV-200mV) | | Vertical resolution (A/D) | 8 bits resolution (2 Channels simultaneously) | | Vertical sensitivity | 5mV/div 5V/div(at input) | | Trigger type | Edge, Video | | Trigger mode | Auto, Normal, Single | | Trigger level | ±6 divisions from screen center | | Acquisition modes | Sample, Peak Detect and Average | | Line/field frequency(Video) | Support standard NTSC, PAL and SECAM broadcast systems | | Cursor measurement | V and T between cursors | | Waveform Math | ¼, ¼, FFT | | Waveform storage | 4 waveforms | | Communication interface | USB2 | | Cymometer | Unavailable | | Power supply | 100V-240V AC, 50/60Hz, CATII | | Power consumption | 15W | | Fuse | 1A, T class, 250V |
|
| |
| Included Accessories |
| | 1 - Probe 1 - Power cord 1 - Probe adjust 1 - USB data cable 1 - CD-Rom 1 - User's Manual
| Included |
