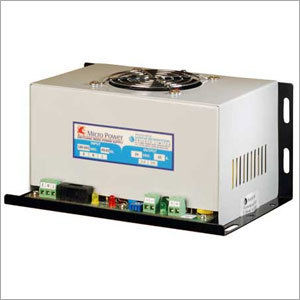

Single Output Dc-Dc Convertor

Product Description

Single Output Dc-Dc Convertor

I/P: 20-35VDC
O/P: 12V/5A
Input: 20-35VDC
Output: 12V/5A

Features

• Parallel able & Series able
• Programmable
• Active Current Sharing Modules
• Redundancy

Technical Specifications

MODEL: PSMLT0512-12

• Input: I/P 230V AC, 1-Ph
• Frequency: 47-63Hz
• Range: 90-270V AC
• Fuse Protection: Yes
• I/P MOV: Yes
• Soft Start: Yes
• Inrush current: 23A@230V AC
• AC Current
• Leakage Current: <5mA@230V AC

OUTPUT

• Nominal Voltage: 5V DC; 12V DC; -12V DC
• Rated Current: 3A; 1A; 0.5A
• Line Regulation: +/- 1%
• Load Regulation: +/- 1%
• Ripple Max: +/- 1% (P-P)
• Noise Max: +/- 1% (P-P)
• Protections
• Overload Protection auto recovery type:102-105%
• Short circuit protection auto recovery type:Yes
• Over Voltage Protection Latching type:105-110%

Current Limit Yes
Start up time 1sec
Hold up time 51ms@230V AC

ENVIRONMENTAL

• Operating temperature up to 500 C.
• Humidity < 95% Rh
• IP 21 Protection

GENERAL

• Isolation Input to Output - 1.5KV
• Input to Earth 1.5KV
• Output to Earth 500V
• MTBF 50K Hrs to MIL

INDICATIONS LED: Output OK

MECHANICAL

• Dimension 125 X 80 X 45H mm- open type
• 155 X 90 X 50H mm with enclosure
• Cooling type Natural
• Weight 0.3Kg- open type
• 0.7kg with enclosure

2 Years Warranty

Specification subject to change as per our continuous developments
