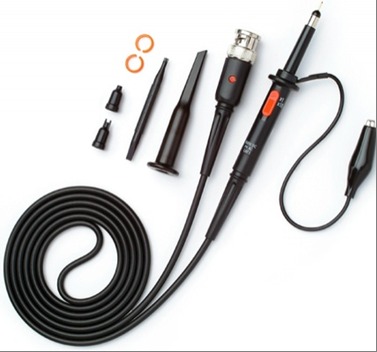

Oscilloscope probe 20-60MHZ 1:10

Oscilloscope probe 20-60MHZ 1:10

Get a Price/Quote

Product Details:

Request to Call Back Send Inquiry
X

Product Description

Probe 1:10 in HP-3060 (for 20MHZ to 60MHZ Oscilloscope)The Probe 1:10 - HP-3060 is 1:10 selectable passive high impedance oscilloscope probe with 60MHz bandwidth (1:10) designed and calibrated for use on an oscilloscope having an input impedance of 1MOhm shunted by 20 pF. However, it may be compensated for use with oscilloscopes having an input capacitance of 15 - 35 pF.

The probe incorporates a two position slide switch in the head which selects the attenuation of X1, X10 position.

Probe 1:10 - HP-3060 - Specification

Max. input voltage

1:10

600 V CAT I / 300 V CAT II (DC + peak AC), derating with frequency

Input resistance

1:10

10 MOhm when used with oscilloscopes which have 1 MOhm input

Input capacitance

1:10

Approx. 23 pF

Bandwidth

1:10

DC to 60 MHz

Rise time

1:10

5.8 nsec

Compensating range

15 - 35 pF

Cable length

1.4 m (55")

Accessories

Channel identifier clip
Sprung hook
Ground lead
Insulating tip
IC tip
Adjusting tool
Measuring tip
